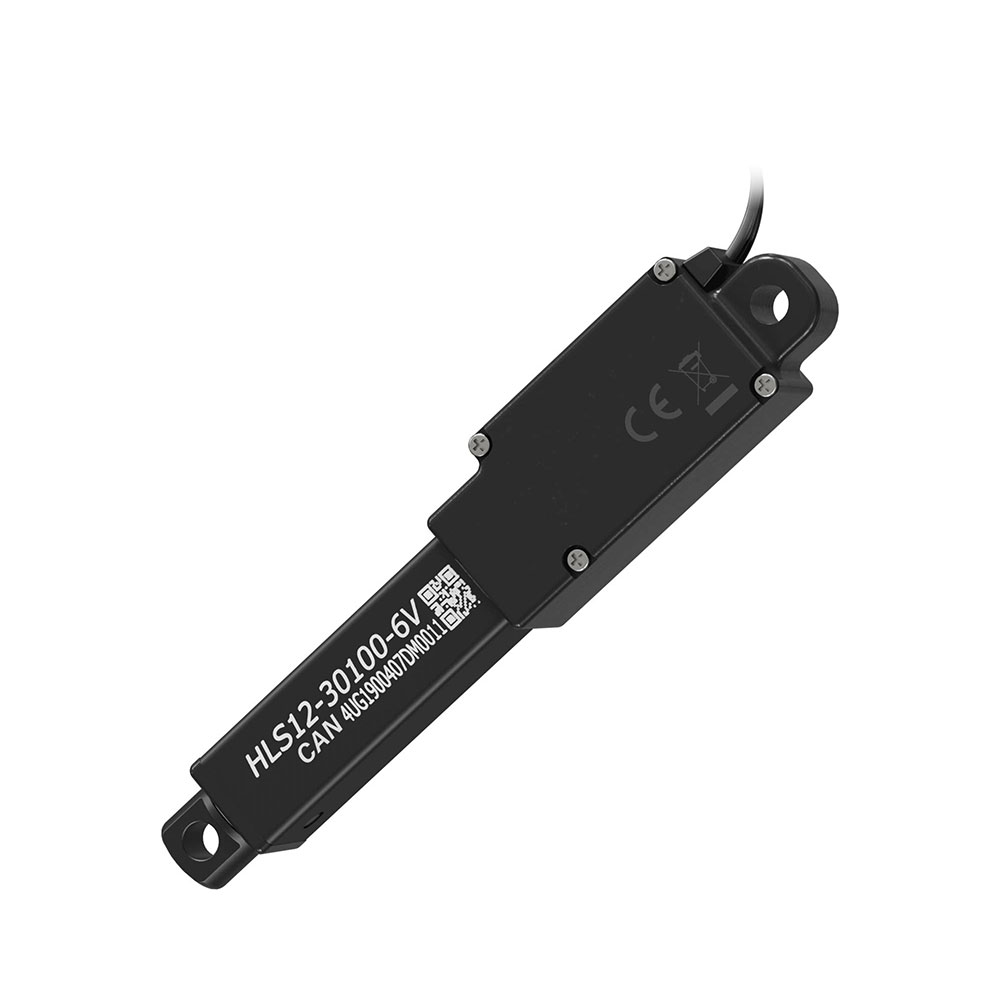

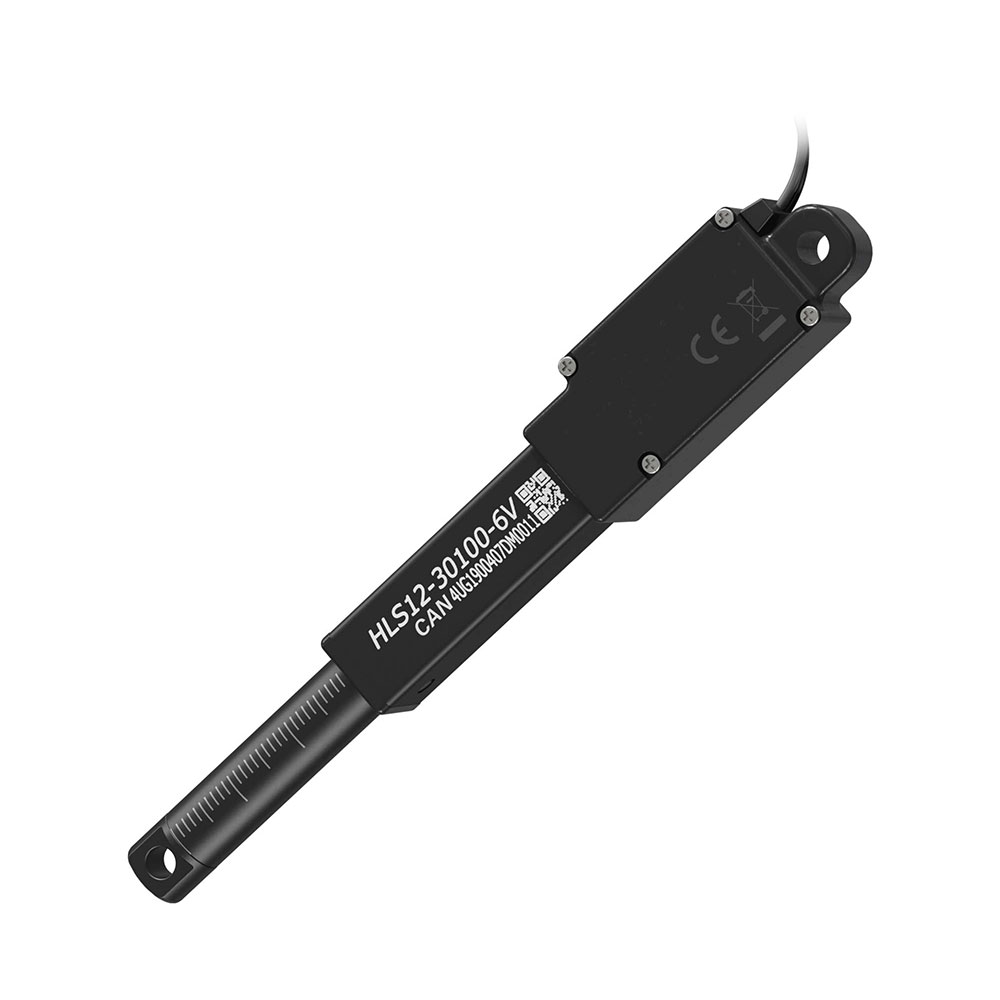

30mm Stroke, 100:1 Gear Ratio, 5mm Lead, DroneCAN / CAN Control, Linear Actuator

With 30mm of travel, a 100:1 gear ratio, and a 4.0~8.4V operating voltage range,the HLS12-30100 is ideal for short stroke applications requiring a faster transit speed with more power.

Controlled using DroneCAN and CAN Bus servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility.

The HLS12-3050 offers more speed, while additional force is available with the high gear ratios of our HLS12-30210 and HLS12-30380 versions.

Applications requiring additional excursion will be better matched to our HLS12-50XX and HLS12-100XX series linear actuators.

Linear
Command Protocol CAN
DroneCAN / UAVCAN v0.0
Weight (g) Min: 34.00
Operating Voltage (V) 7.4V
Motor Type Cored Metal Brush
Circuit Digital
Lead Screw 5
Gear Ratio 100:1
No Load Speed (mm/s) 16.1
No Load Current (mA) 130
Maximum Efficiency Point Load (kg / N): 2.1 / 20.59

Speed (mm/s): 12.7

Current (mA): 250
Pear Power Point Load (kg / N): 3.8 / 37.54

Speed (mm/s): 8.6

Current (mA): 370
MAX FORCE Load (kg /N): 5.2 / 50.87

Speed (mm/s): 4.0

Current (mA): 490
Stall Torque (N) 6.2 / 60.56
Max Static Force (N) 25.19 kgf / 247 N
Stroke Spec (mm) 30
Repeatability (mm) ± 0.2
Max Side Load 4.08 kgf / 40 N (Extended)

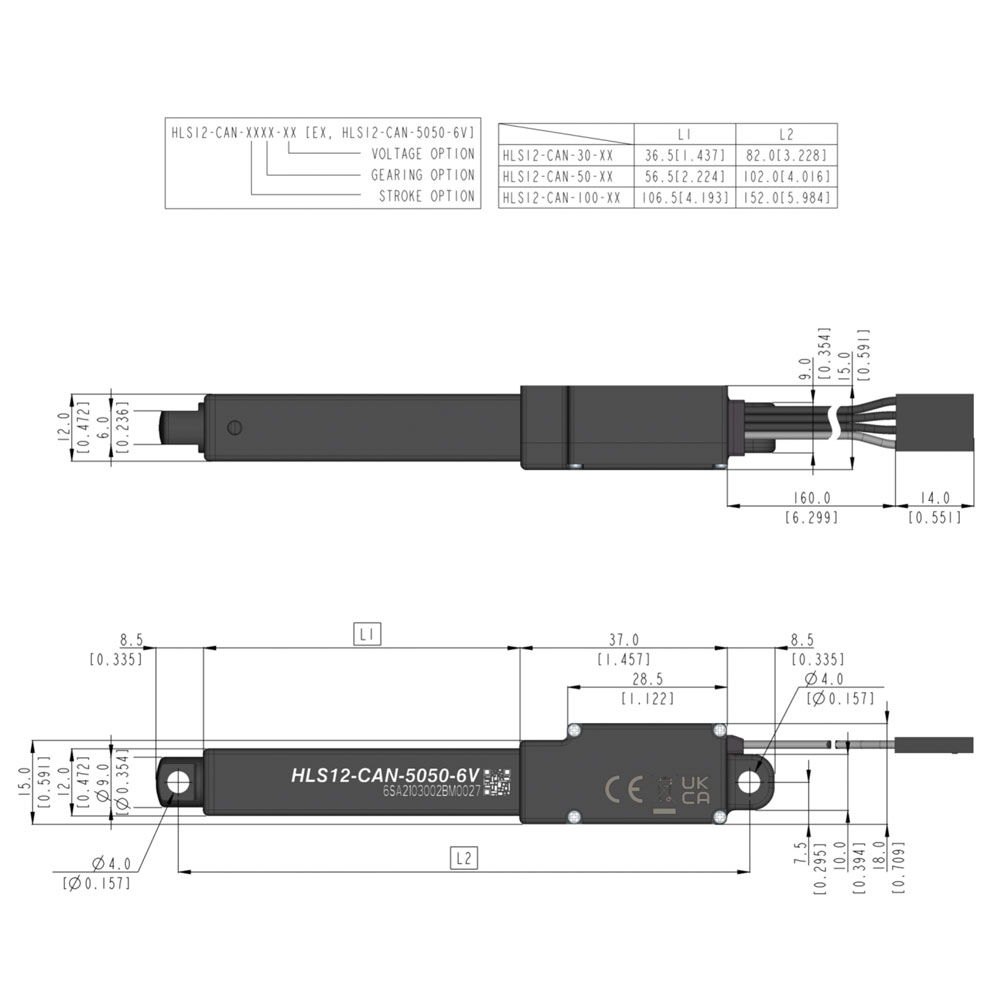

Dimensions 82.0 x 15.0 x 18.0
Case Material Engineering Plastic & Aluminum Pipe
Gear Material Metal
