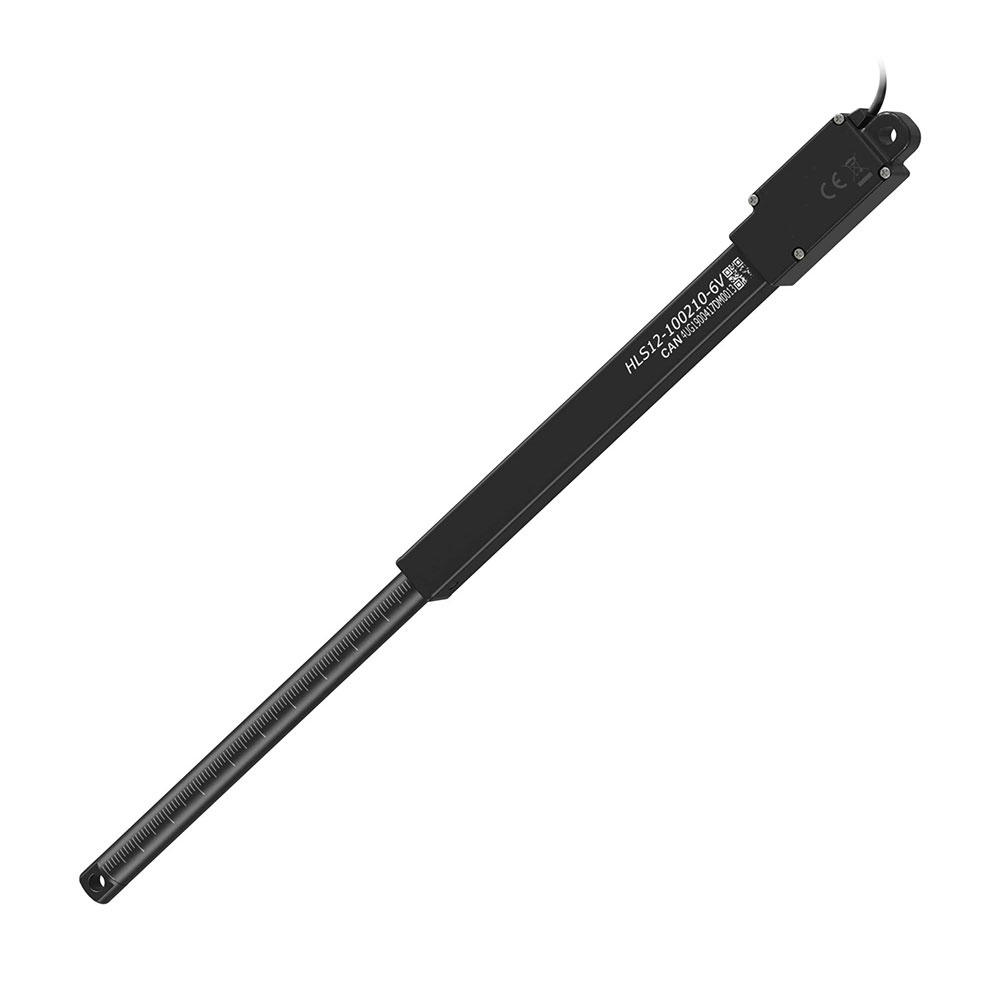

100mm Stroke, 210:1 Gear Ratio, 5mm Lead, DroneCAN / CAN Control, Linear Actuator

With 100mm of travel, a 210:1 gear ratio, and a 4.0~8.4V operating voltage range, the HLS12-100210 is ideal for short stroke applications requiring higher power.

Controlled using a traditional DroneCAN and CAN Bus servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility.

The HLS12-10050 and HLS12-100100 offer more speed, while additional force is available with our high gear ratio HLS12-100380 version.

Applications requiring less excursion will be better matched to our HLS12-30XX and HLS12-50XX series linear actuators.

Linear
Command Protocol CAN
DroneCAN / UAVCAN v0.0
Weight (g) Min: 56.00
Operating Voltage (V) 7.4V
Motor Type Cored Metal Brush
Circuit Digital
Lead Screw 5
Gear Ratio 210:1
No Load Speed (mm/s) 7.5
No Load Current (mA) 130
Maximum Efficiency Point Load (kg / N): 4.4 / 43.60

Speed (mm/s): 5.6

Current (mA): 250
Pear Power Point Load (kg / N): 7.7 / 75.09

Speed (mm/s): 4.0

Current (mA): 370
MAX FORCE Load (kg /N): 9.9 / 96.89

Speed (mm/s): 2.8

Current (mA): 490
Stall Torque (N) 12.4 / 121.11
Max Static Force (N) 25.19 kgf / 247 N
Stroke Spec (mm) 100
Repeatability (mm) ± 0.5
Max Side Load 1.53 kgf / 15 N (Extended)
Dimensions 152.0 x 15.0 x 18.0
Case Material Engineering Plastic & Aluminum Pipe
Gear Material Metal
